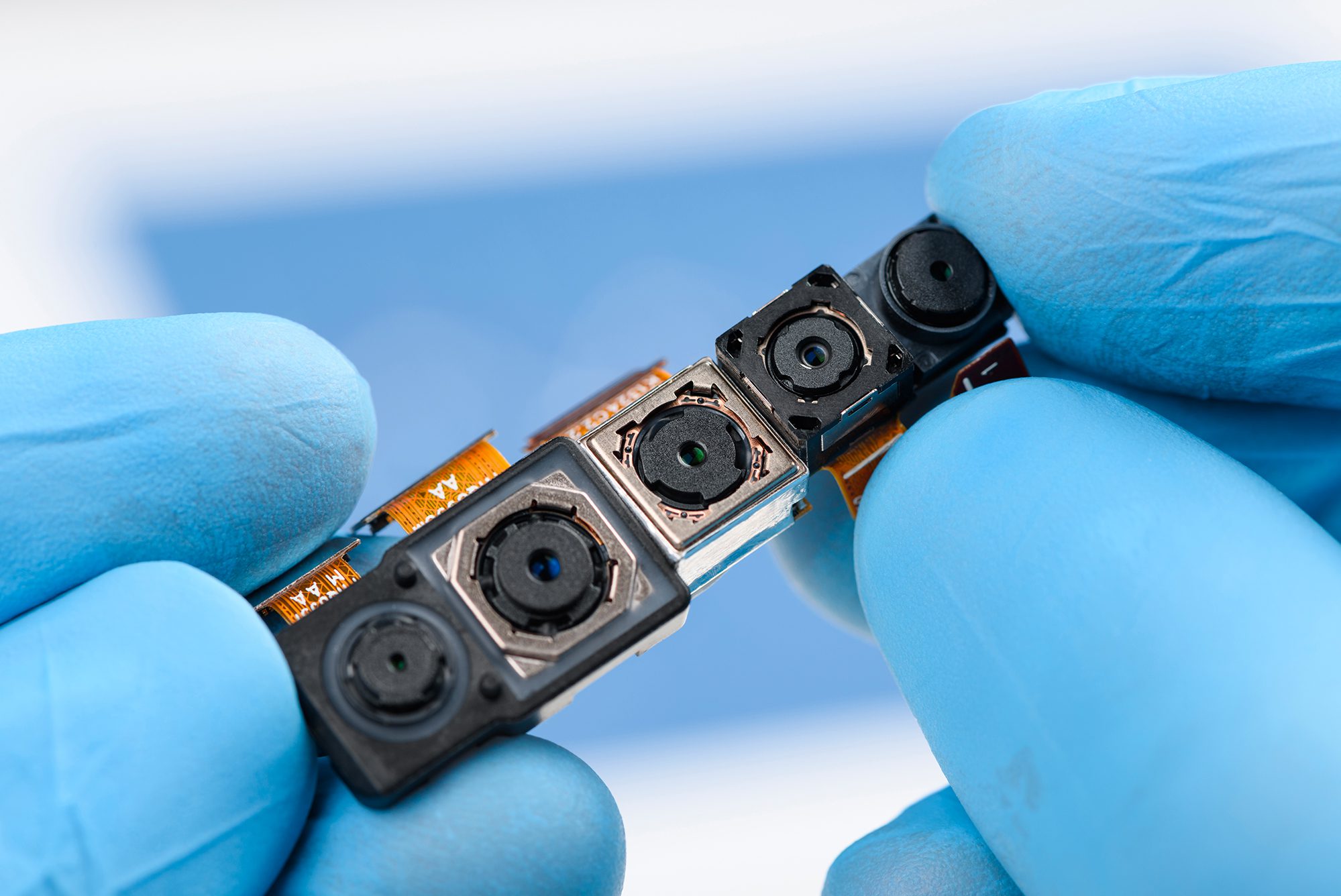

Multi-Camera Input Aggregation Device

multi-camera device
  • Camera Input Aggregation
  • Video Capture
  • Graphics Rendering
  • Camera Interface

Overview

A client chose Nuvation to implement camera input aggregation into their video capture and graphics rendering device. Nuvation’s hardware team provided hardware design, schematics, layout, prototyping, and validation testing. The FPGA design team also provided FPGA design for MIPI camera interfacing and aggregation.

Project Details

Design features

  • 8 MIPI camera inputs – 1 lane or 2 lanes, up to 1.5 Gbps/lane
  • 1 MIPI output – 4 lane at 2.5 Gbps/lane
  • Lattice Crosslink-NX FPGA
  • Lattice MIPI PHY IP
  • Camera aggregation for input to video processor
  • 3D imaging application
