Custom BMS for Large LFP Battery Module

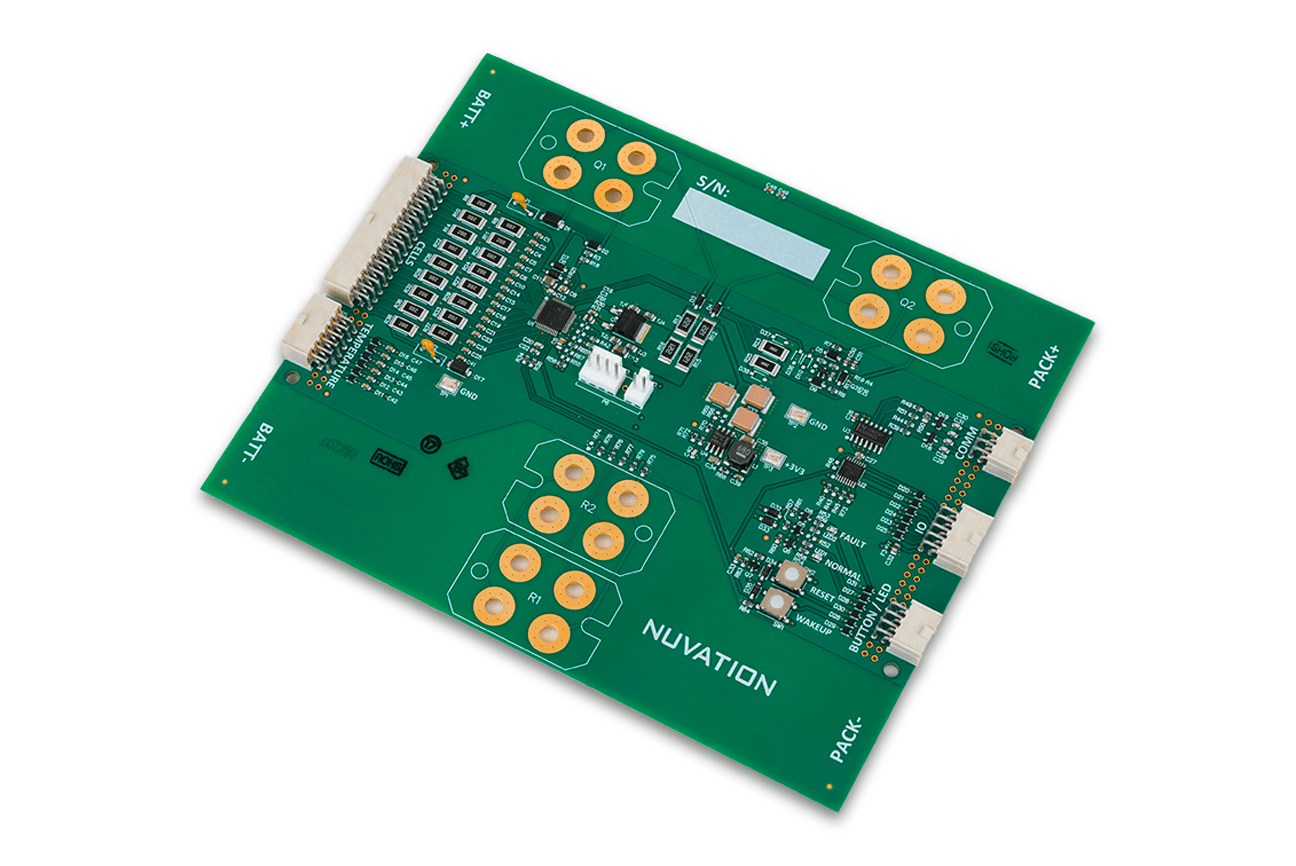

custom battery management system printed circuit board

Tags

Hardware DesignPower Design
  • Microcontroller-Free Design
  • 200A Charge/Discharge
  • Stack & Cell Management
  • RS-422 Monitoring Interface

Overview

Nuvation designed a custom battery management system for a large LiFePO4 (LFP) battery module that resembled a suitcase-sized cordless drill battery. The pure-hardware, microcontroller-free solution simplified development by eliminating software overhead.

Project Details

Design features

  • Microcontroller-Free Design: Eliminates complexity and software development overhead
  • High Current Handling: Supports 200A charge and discharge currents
  • Stack-Level Management: Offers stack-level monitoring and management
  • Cell-Level Management: Provides cell balancing and voltage monitoring
  • Temperature Management: Includes temperature monitoring
  • Fault Detection and Protection: Incorporates fault detection and protection features
  • Robust Interface: Utilizes RS-422 interface with a serial to I2C bridge for configuration and external monitoring
